The perfect solution for replacing a standard electric fireplace or a redundant gas fire opening. By sliding the lid across slightly, you can regulate the size of flame, the heat output (2-2.5 kW) and the burning time (2.5-4 hrs).

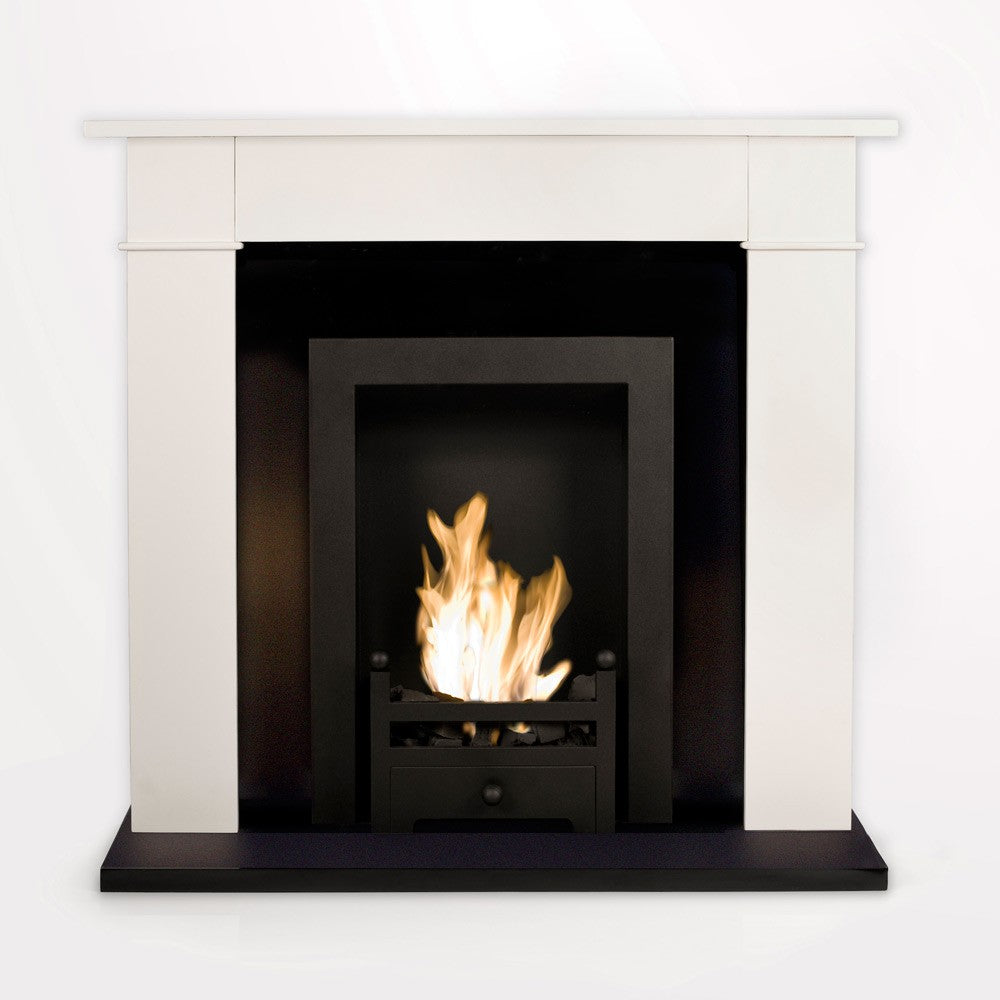

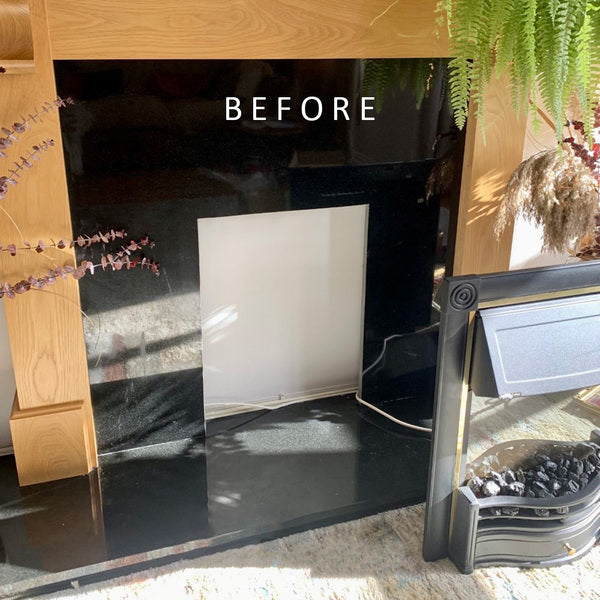

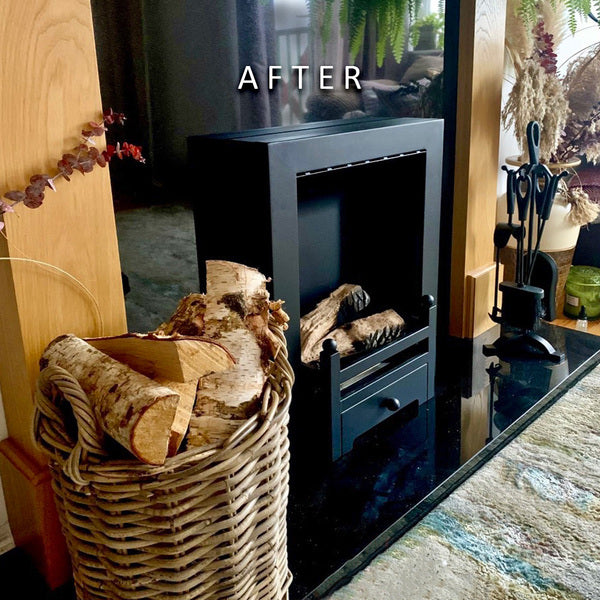

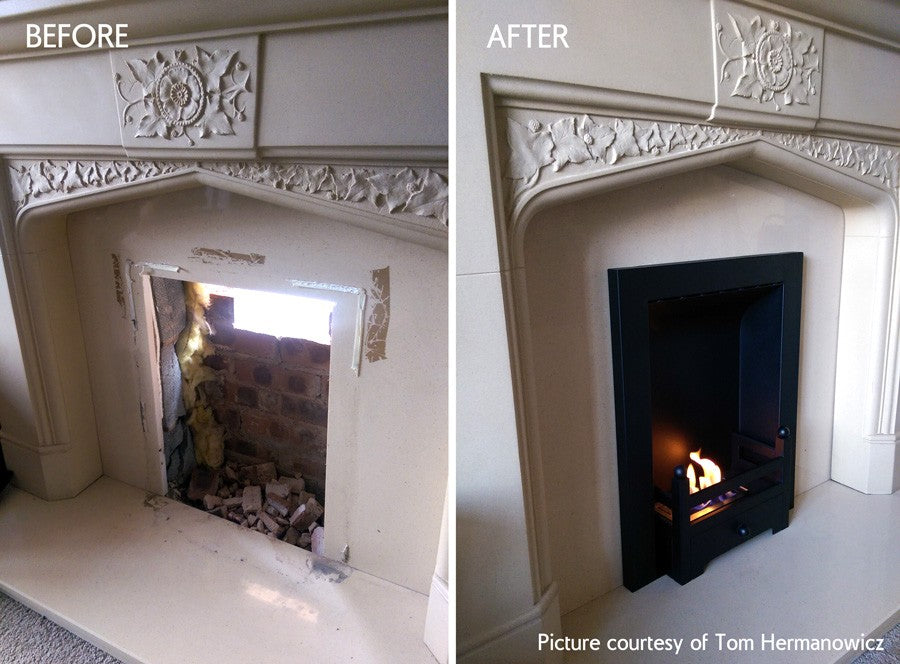

The DIY Bioethanol Insert gives you more flexibility and is the perfect solution for replacing your old standard electric fireplace or a redundant gas fire opening. You can now easily and quickly create your dream fireplace with a mantelpiece of your choice.
We specially designed the DIY Bioethanol Insert to fit our LEXHAM Bioethanol Mini Basket Fire Insert. It holds a Mini burner of a 750 ml capacity and including a special set with the 18 pieces Coal Set.

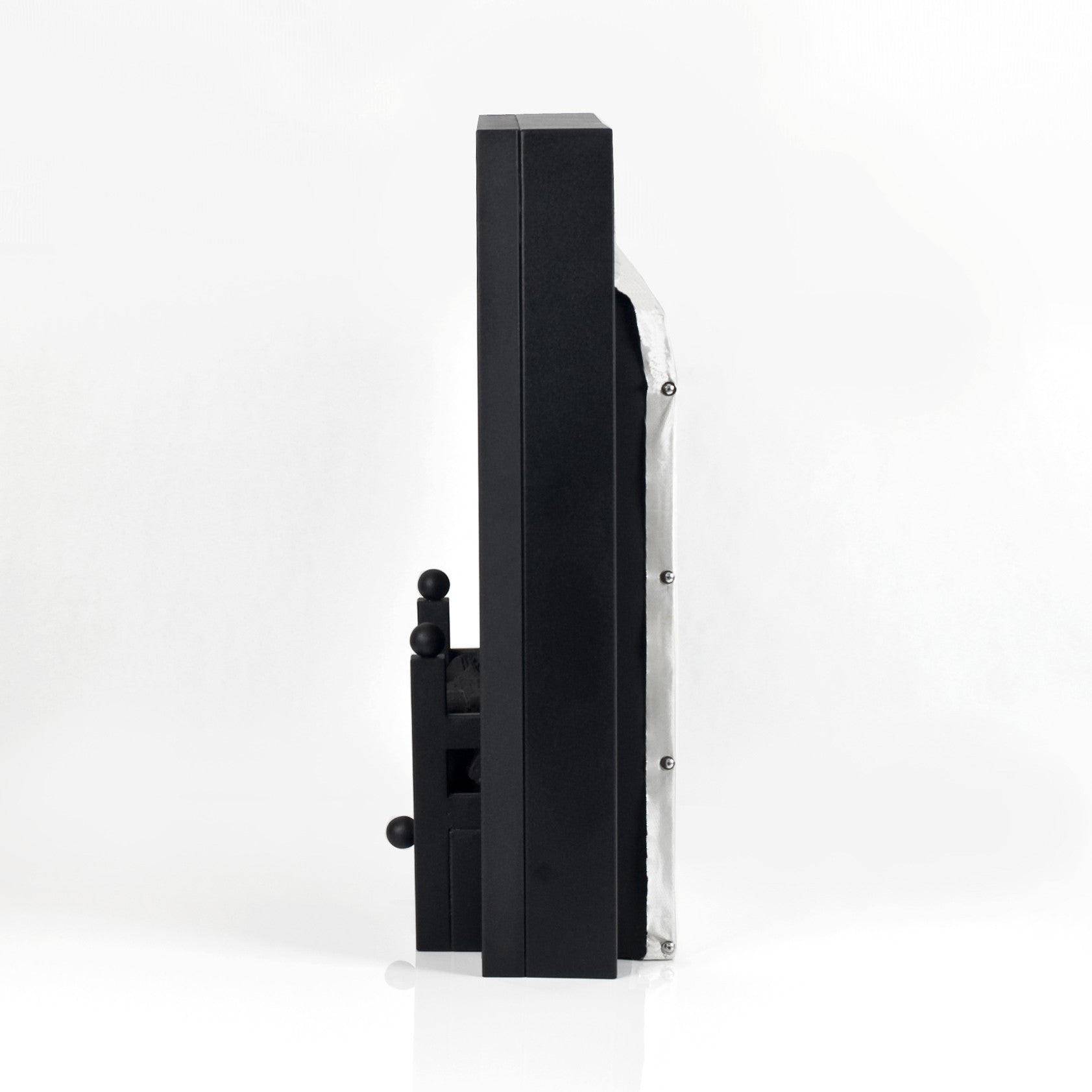

Additionally, the spacer (frame), which is included, brings the unit forward to compensate for less depth at the back (if needed). At the same time, the double thickness and the heat shield at the back provide a durable heat protection for your wall as our unique venting system pushes the heat out quickly into the room.
Moreover, the lid includes Fragrance Diffusers, making the fireplace compatible with our Aura Oils. By sliding the lid across slightly, you can regulate the size of flame, therefore the heat output (2-2.5 kW) and the burning time (2.5-4 hrs).

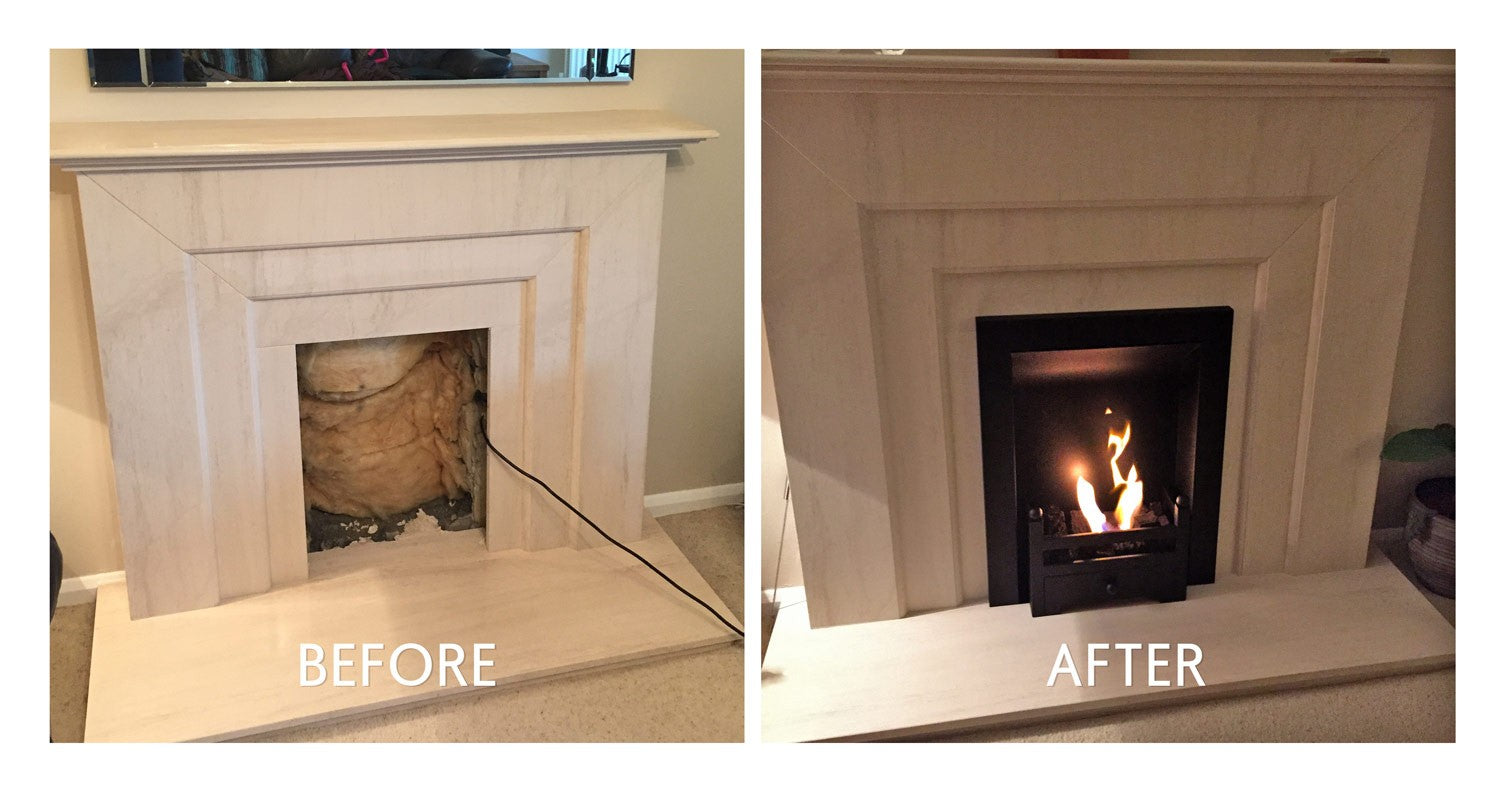

This unit is suitable for DIY electric fire conversion; however, it produces a real flame so regular fire regulations for building fireplaces will apply.
Recommended accessories:
Crystal Premium Bioethanol Fuel
Fibre Glow
Aura Oil
Lighter
In the box of the DIY Bioethanol Insert:

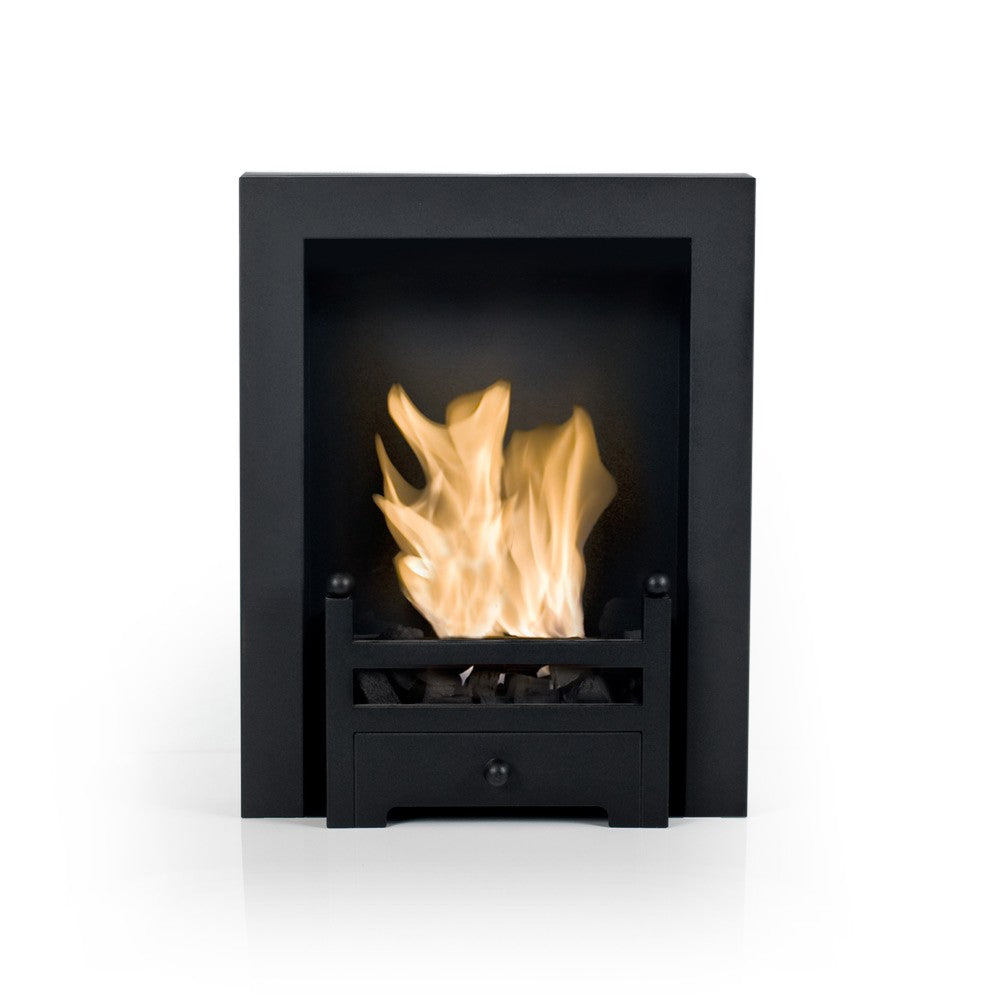

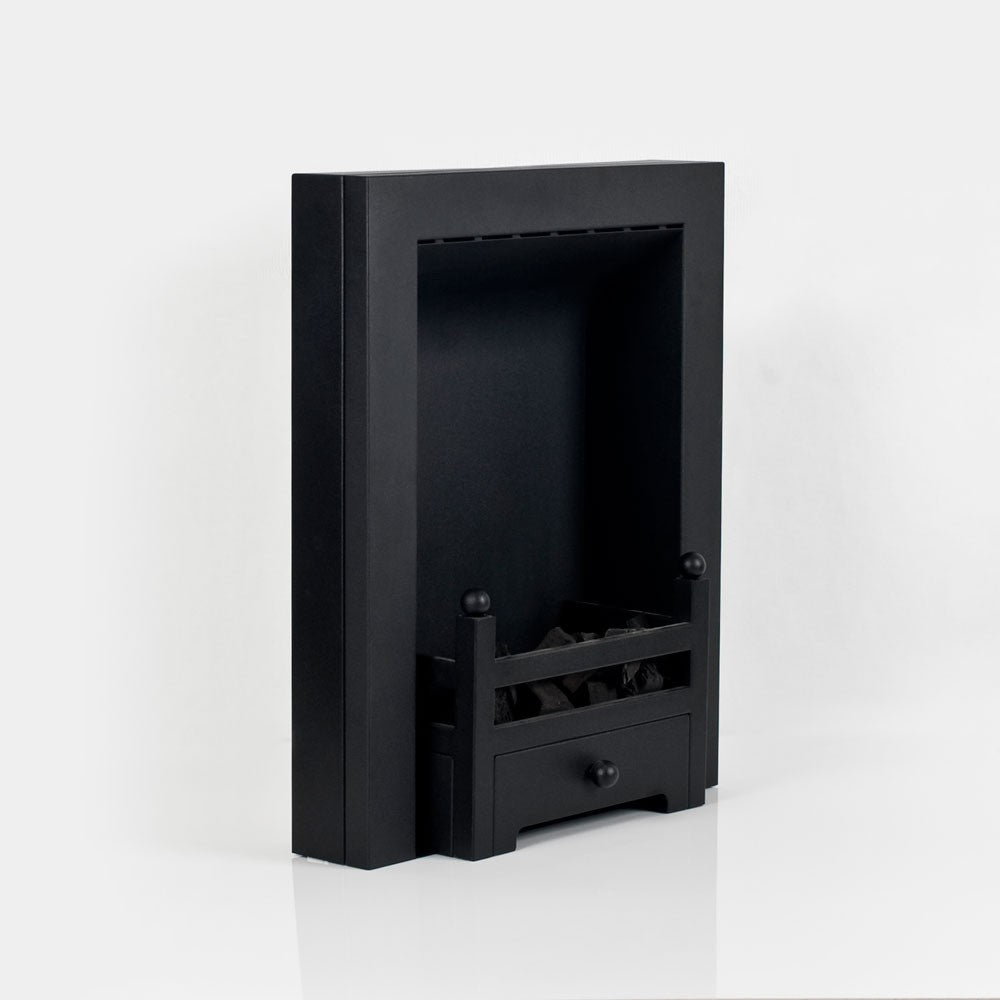

Black fire Insert with heat shield

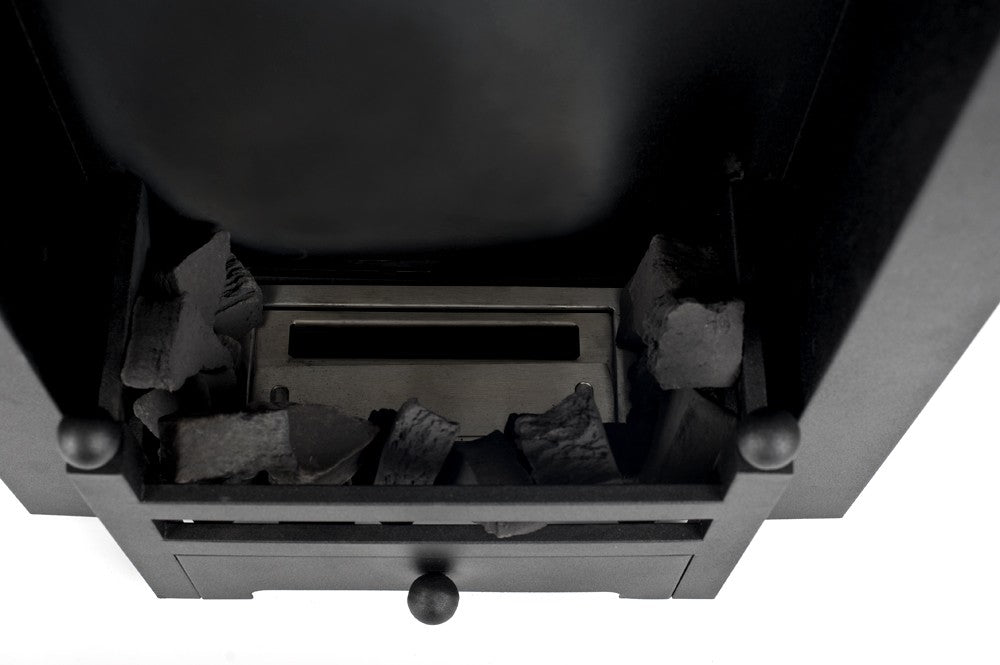

Mini Bio Grate with stainless steel Mini Burner
Engraved sliding lid featuring Fragrance Diffusers for Aura Oils
Black steel spacer (frame)
Control/extinguishing tool
Mini Coal Set
Funnel
User Instructions
NOTE: Every mantelpiece is different! An electric fireplace made of wood or MDF needs a replacement or a lining of the back panel. Please make sure to use a non-flammable material to do this. We recommend using Vermiculite Board for this purpose.
Technical Info
Dimensions: W 475mm H 600mm D 45mm minimum
Burner capacity: 750 ml
Burning time: 2.5-4 hrs (depending on the size of the aperture); flame height adjustable
Heat output guidance: 2-2.5 kW (This is comparable to two bars of an electric fire.)
Fuel suitable: Bioethanol Fuel (maximum ethanol content: 96%). NOTE: Gel fuel is NOT suitable.
When in stock, delivery within approx. 2-5 working days.
Requires an address where someone is available to sign all day or a secure location for the courier.
Free Delivery promotion: please note that the delivery is only free to UK mainland (go to our DELIVERY section for postcodes which qualify for a delivery supplement).
Video
Downloads
E-LEAFLET Printable DIY Bioethanol Insert leaflet – ideal to introduce the concept to somebody without too many details. Contains: product pictures, key facts, a review, a guidance size drawing, customer pictures, contact details, QR code. No price mention.
DIY Bio Insert - SIZE DRAWING Guidance size drawing and safety note on fitting DIY Insert into an existing fireplace or building a fireplace with it.
